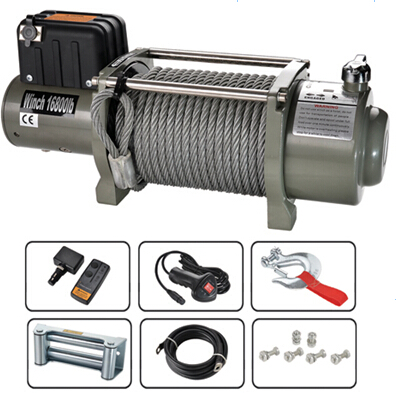

16800lbs truck heavy duty winch

winch with 500A solenoid and the latest gear box assmebly &clutch handle
Rated line pull: 16800LBS(7620kgs) single line
Motor: 4.2KW/5.7HP 12V,4.6KW/6.25HP 24V,Series Wound
Control: Remote switch,12ft (3.7m)lead

Wireless Remote Contrlo:Included
Gear train: 3 Stage Planetary
Gear reduction ratio: 312.4:1
Clutch: Keyway Cam
Braking Action:  Two-way,Automatic In-The-Drum
Drum Size: Φ3.35"x8.72"(Φ85mmx221.5mm)
Cable:Φ29/64"x94'(Φ11.5mmx28m)
Fairlead:4-Way Roller Fairlead
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 gauge,72"(1.83m)
Finish: Dark gray powder coat
Overall Dimension: 21.5"x7.09"x9.73"(547mmx180mmx247mm)
Mounting Bolt Pattern: 254mmx114.3mm
Packing size: 60x23x38.5cm   1PC/CTN
Weight: N.W. 54kgs  G.W. 56Kgs
