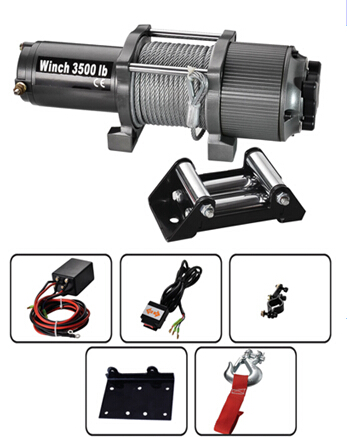

3500lbs electric winch

Rated in pull: 3500lbs(1588kg) single line
motor: 0.8kw/1.1hp 12V, permanent magnet
gear reduction ratio: 128:1
gear reduction:3-Stage planetary
clutch:Cam activated
drum dimension: Φ1.77"x3.19"(Φ45mm x 81mm)

cable: Φ7/32"x49’(Φ5.4mm x 15m)
motor calbe:1.32m
Switch control lead:3m
Battery cable:1.83m
overall dimension: 13"x4.8"x5.0"(330mm x 123mm x 128mm)
mounting dimension: Φ3"x4.9"(Φ76.2mm x 124mm)

Packing size：41.5x28x18cm  1PCS/CTN
Weight：N.W/G.W: 12kg/13kg
