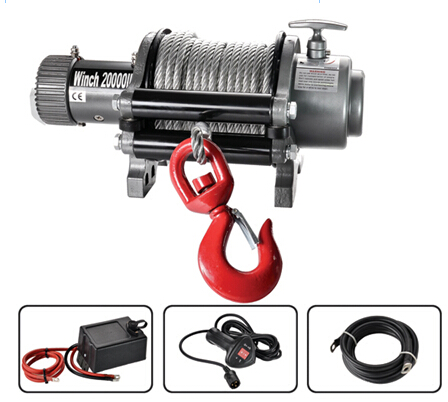

Heavy Duty Electric Winch 20000lbs

Control: remote switch, 12ft(3.7m) lead
Gear reduction ratio: 375:1
Clutch: Keyway Cam
Breaking action: two-way, automatic in-the-drum
Drum size: Φ99mmx201.5mm
Cable: Φ13.5mmx30m
Remote control: wired remote control
Battery: recommended 650CCA minimum for winching
Battery leads: 2 gauge, 72”(1.83m)
Max current (no lead): ≧75A(12v); ≧65A (24v)
Max current: ≧465A(12V), ≧410A(24v)
Finish: dark grey powder coat
Overall dimension: 565x310x280mm
Mounting plate: 254x114.3mm.254x194.3mm

 M10x30 Outside hexagon 8.8 grade 8pieces
Winch packing size:60x38x40cm   53kgs（with out cable）
Cable packing size:46x46x15cm    24kgs
