9500LBS winch

95000lbs heavy duty Electic Winch
INQUIRY
DATA SHEET

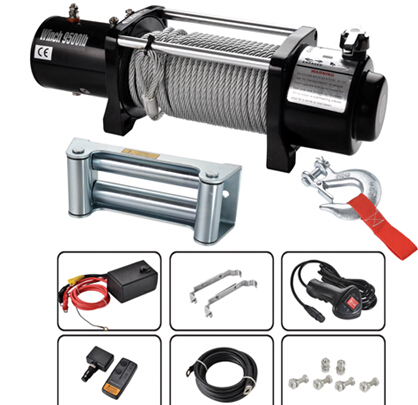

95000lbs heavy duty Electic Winch

winch with 500A solenoid and the latest gear box assmebly &clutch handle

Rated line pull: 9500LBS(4300kgs) single line
Motor: Motor: 4.0KW/5.5HP 12V,4.8KW/6.44HP 24V ;Series Wound
Control: Remote switch,12ft (3.7m lead
Wireless Remote Contrlo:Included
Gear train: 3 Stage Planetary
Gear reduction ratio: 148.2:1
Clutch: Keyway Cam
Braking Action:  Two-way,Automatic In-The-Drum
Drum Size: Φ2.5"x8.8"(Φ63.5mmx224mm)
Cable:Φ21/64"x94'(Φ8.3mmx28m)
Fairlead: 4-Way Roller Fairlead
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 gauge,72"(1.83m)
Finish: Black powder coat
Overall Dimension: 21.1"x6.3"x8.6" (537mmx160mmx218mm)
Mounting Bolt Pattern: 254mmx114.3mm
